geom_rrect — geom_rrect • BioVizSeq

Rounded rectangle

Usage

geom_rrect(
  mapping = NULL,
  data = NULL,
  stat = "identity",
  position = "identity",
  r = 0.2,
  ...,
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping: Set of aesthetic mappings created by aes. If specified and inherit.aes = TRUE (the default), it is combined with the default mapping at the top level of the plot. You must supply mapping if there is no plot mapping.
data: A data.frame, or other object, will override the plot data. All objects will be fortified to produce a data frame.
stat: Name of stat to modify data.
position: The position adjustment to use for overlapping points on this layer.
r: The radius of rounded corners.
...: additional parameter, e.g. color, linewidth, alpha.
na.rm: If "FALSE" (default), missing values are removed with a warning. If "TRUE", missing values are silently removed, logical.
show.legend: Whether to show legend, logical.
inherit.aes: Whether to inherit aesthetic mappings, logical, defaults to "TRUE".

Value

ggplot object

Details

draws rounded rectangle by using the locations of the four corners (xmin, xmax, ymin and ymax) like geom_rect().

Aesthetics

geom_rrect() understands the following aesthetics (required aesthetics are in bold):

xmin
xmax
ymin
ymax
alpha
colour
fill
group
linetype

Learn more about setting these aesthetics in vignette("ggplot2-specs").

Author

Shiqi Zhao

Examples

library(ggplot2)
#> Warning: package 'ggplot2' was built under R version 4.3.3
df <- data.frame(
 xmin = c(1, 2, 3),
 xmax = c(2, 3, 4),
 ymin = c(1, 2, 3),
 ymax = c(2, 3, 4),
 category = c("A", "B", "C")
 )

 p <- ggplot(df) +
   geom_rrect(aes(xmin = xmin, xmax = xmax,
              ymin = ymin, ymax = ymax, fill = category),
             r = 0.4, linewidth = 1, colour = "black")

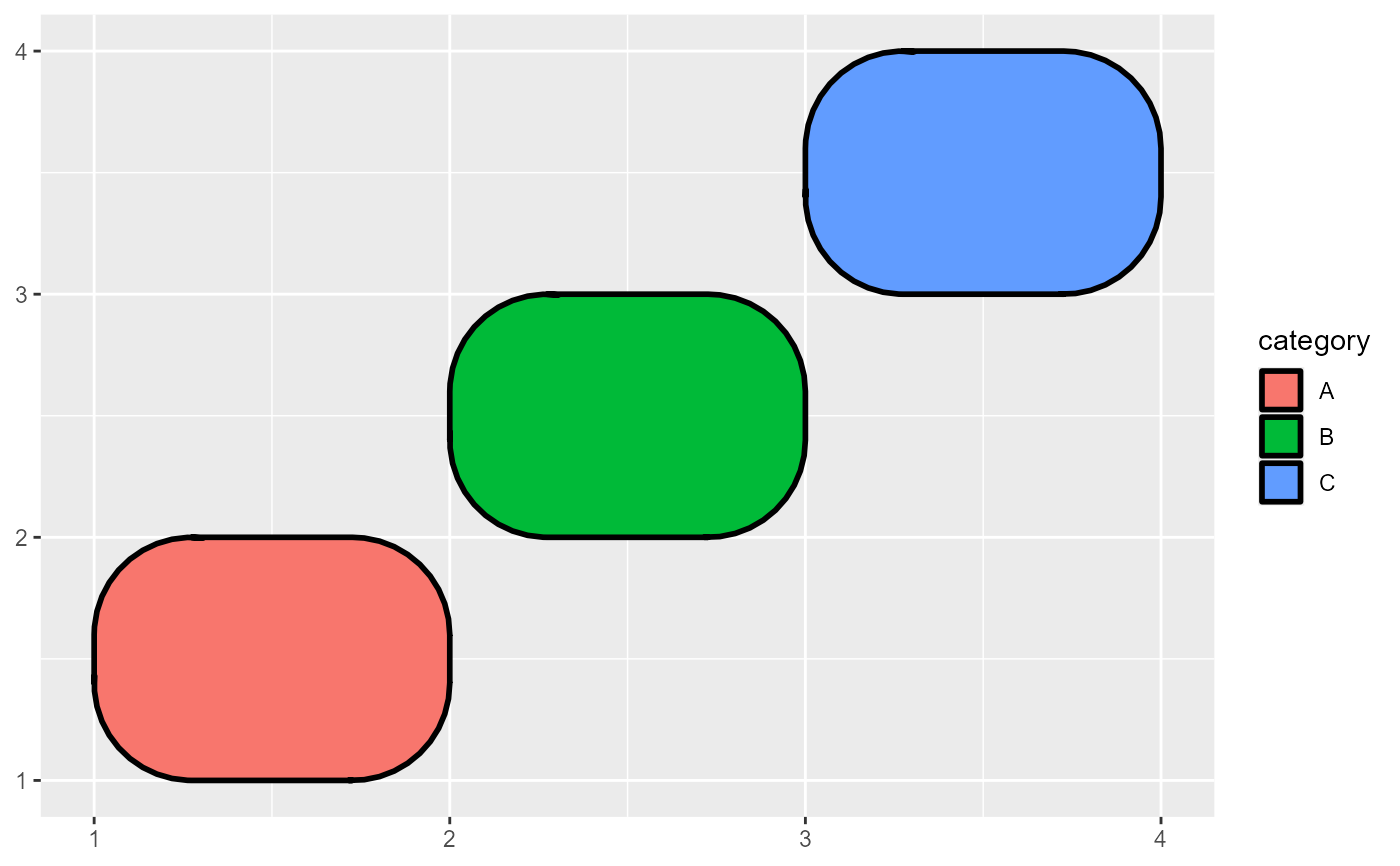

 print(p)
